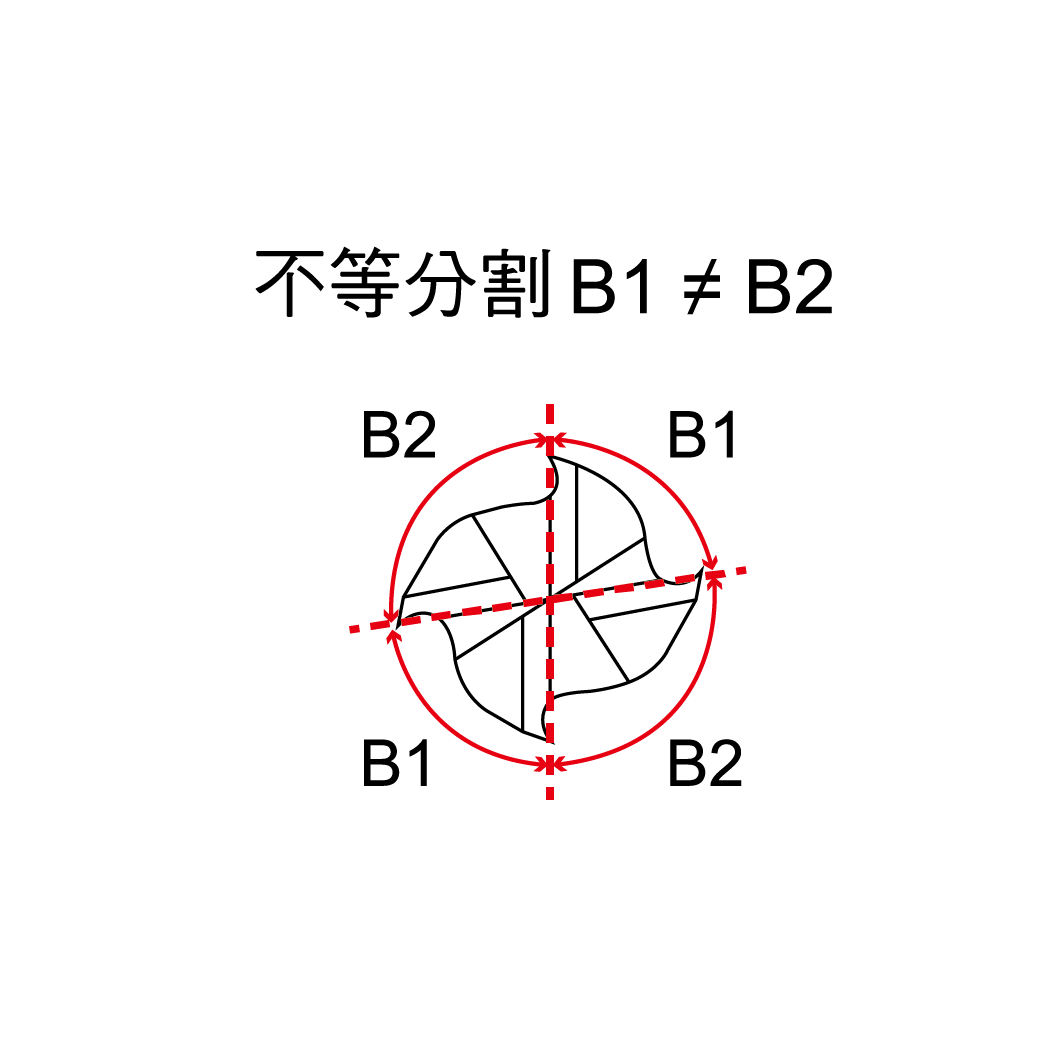

2D ERVB (Highly-Efficiency & Anti-Vibration Operation, Ball Nose),4 Flutes

Model: 2D ERVB (Highly-Efficiency & Anti-Vibration Operation, Ball Nose),4 Flutes
  • GR
  • 30度
  • Shank h5
Previous Back to list Next
  • 2D ERVB (Highly-Efficiency & Anti-Vibration Operation, Ball Nose),4 Flutes
  • 2D ERVB (Highly-Efficiency & Anti-Vibration Operation, Ball Nose),4 Flutes
  • 2D ERVB (Highly-Efficiency & Anti-Vibration Operation, Ball Nose),4 Flutes

Specification

Unit：mm

2D ERVB 0102GR 0.5R

1

 2 4 50
2D ERVB 0102GRD6 0.5R 1 2 6 50
2D ERVB 0152GR 0.75R 1.5 3 4 50
2D ERVB 0152GRD6 0.75R 1.5 3 6 50
2D ERVB 0202GR 1R 2 4 4 50
2D ERVB 0202GRD6 1R 2 4 6 50
2D ERVB 0302GRD3 1.5R 3 6 3 50
2D ERVB 0302GR 1.5R 3 6 4 50
2D ERVB 0302GRD6 1.5R 3 6 6 50
2D ERVB 0402GR 2R 4 8 4 50
2D ERVB 0402GRD6 2R 4 8 6 50
2D ERVB 0502GR 2.5R 5 10 6 50
2D ERVB 0602GR 3R 6 12 6 50
2D ERVB 0802GR 4R 8 16 8 60
2D ERVB 1002GR 5R 10 20 10 75
2D ERVB 1202GR 6R 12 24 12 75

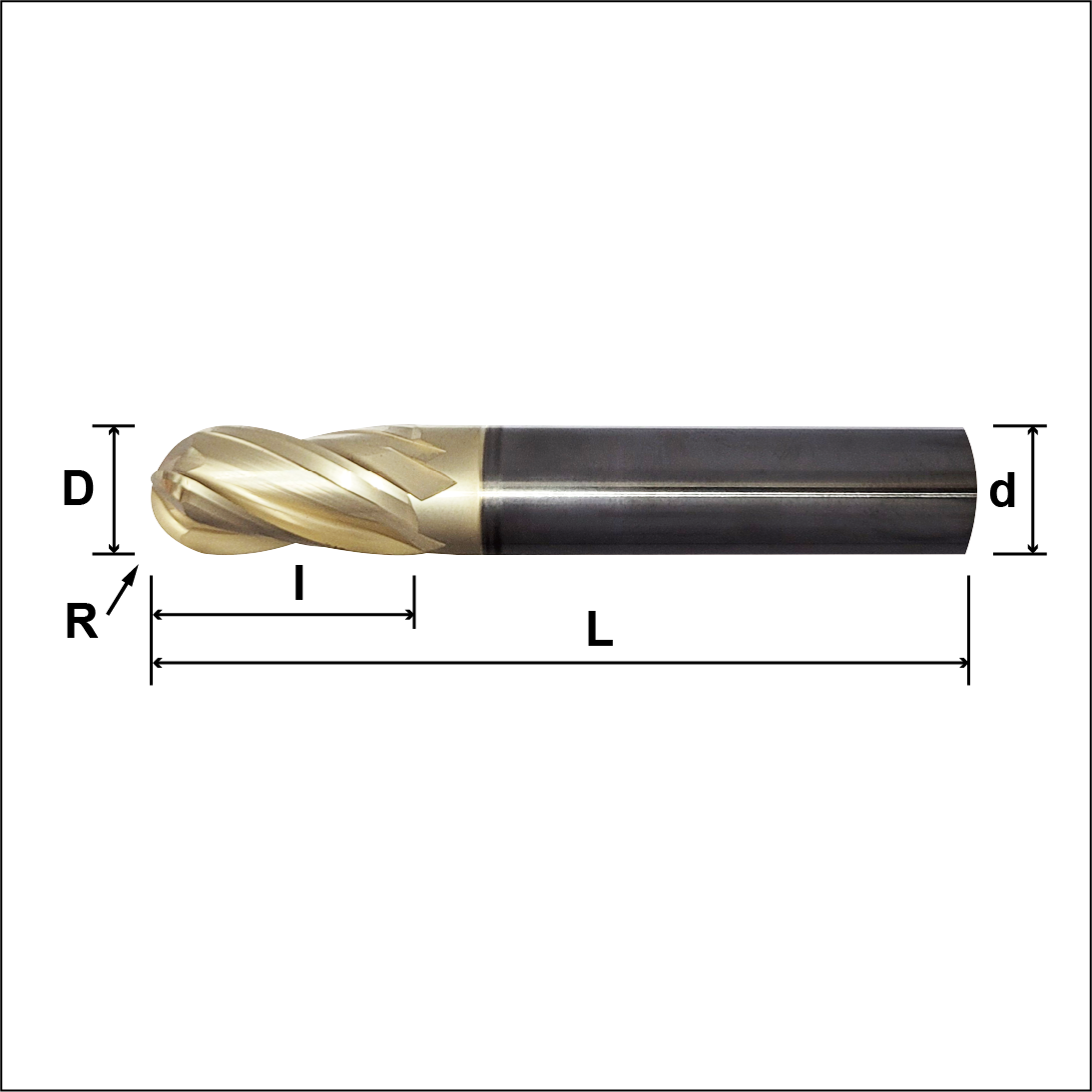

Model No. Radius
R		 Diameter
D		 Flute Length
I		 Shank Diameter
d		 Overall Length
L		 price

Remarks: For other specifications, please call to inquire
