638#Heat Treatment is Dry for Use

Model: 638 MSP6 (High Hardness ),6 Flutes
  • 638
  • NB
  • 45度
  • HRC75
  • Shank h5

Specially designed for HRC45-68 workpiece processing with high heat resistance and high attrition resistance coating NB, even hard to processing, also can be easily to completed.

Suitable for applications：

  • Alloy steel
  • Die steel HRC45~HRC68
Previous Back to list Next
  • 638 MSP6 (High Hardness ),6 Flutes
  • 638 MSP6 (High Hardness ),6 Flutes
  • 638 MSP6 (High Hardness ),6 Flutes

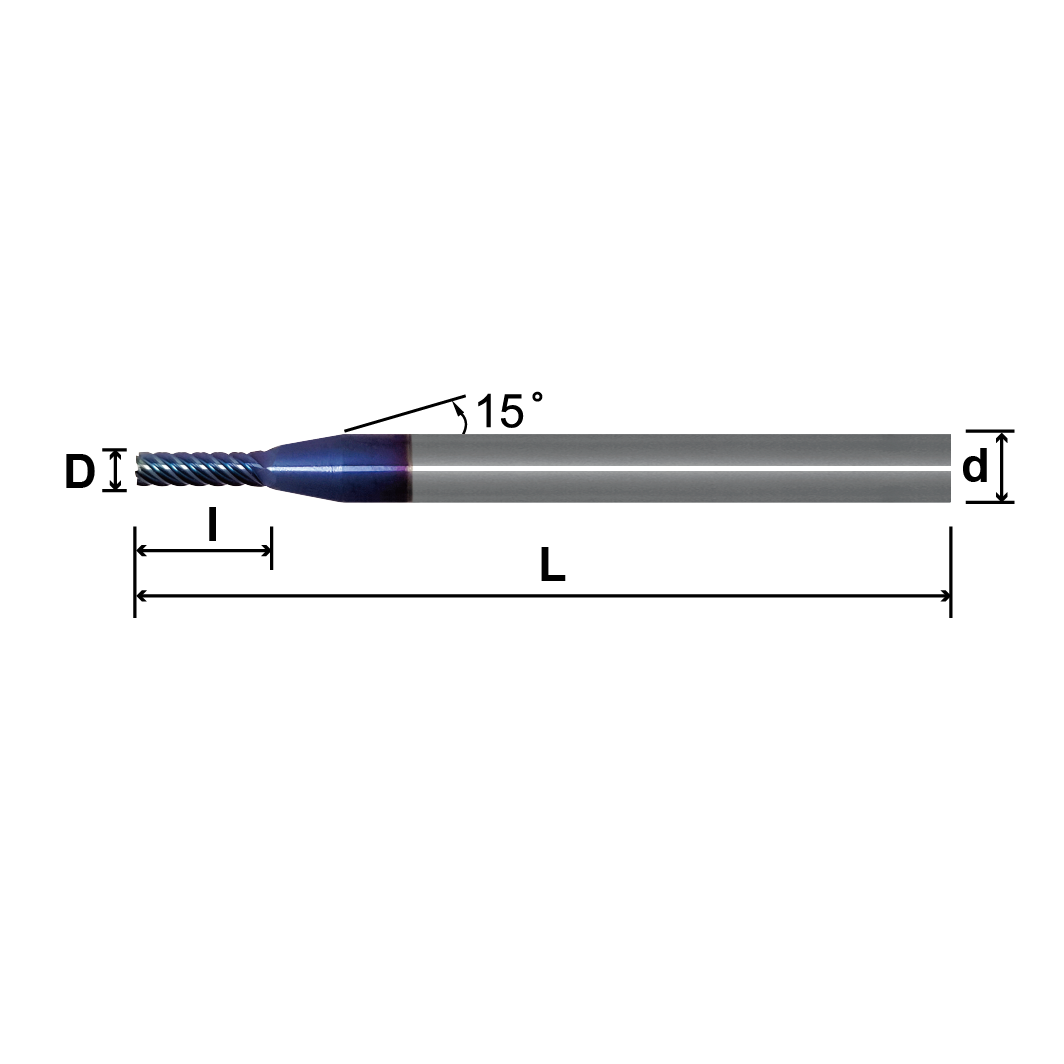

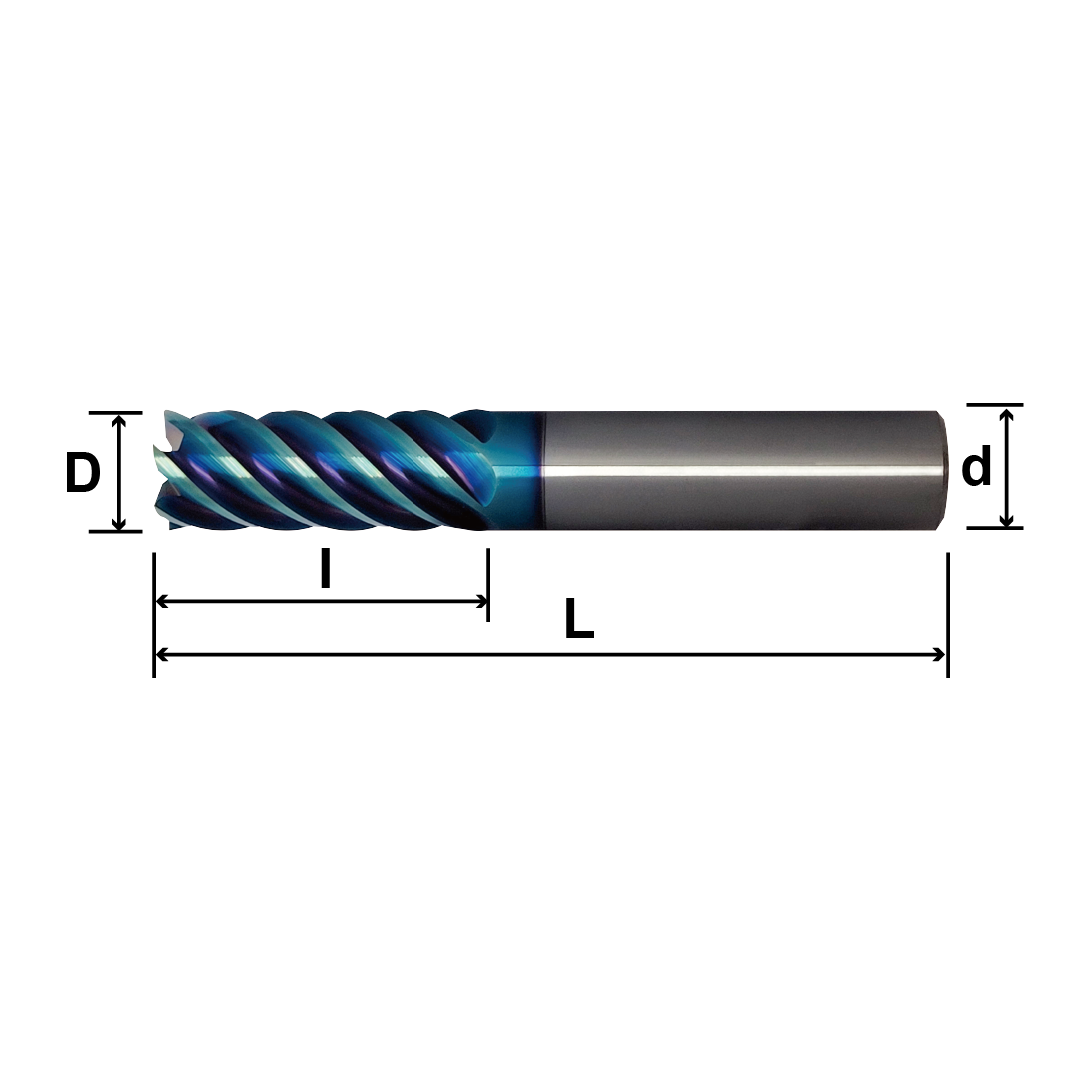

Specification

Unit：mm

Model No. Diameter D Flute Length I Shank Diameter d Overall Length L price
638 MSP 0306NB 3 8 6 50
638 MSP 0406NB 4 11 6 50
638 MSP 0506NB 5 13 6 50
638 MSP 0606NB 6 15 6 50
638 MSP 0806NB 8 20 8 60
638 MSP 1006NB 10 30 10 75
638 MSP 1206NB 12 30 12 75
638 MSP 1606NB 16 50 16 100
638 MSP 2006NB 20 50 20 100

Remarks: For other specifications, please call to inquire
