2#General Steel is Generally Processed

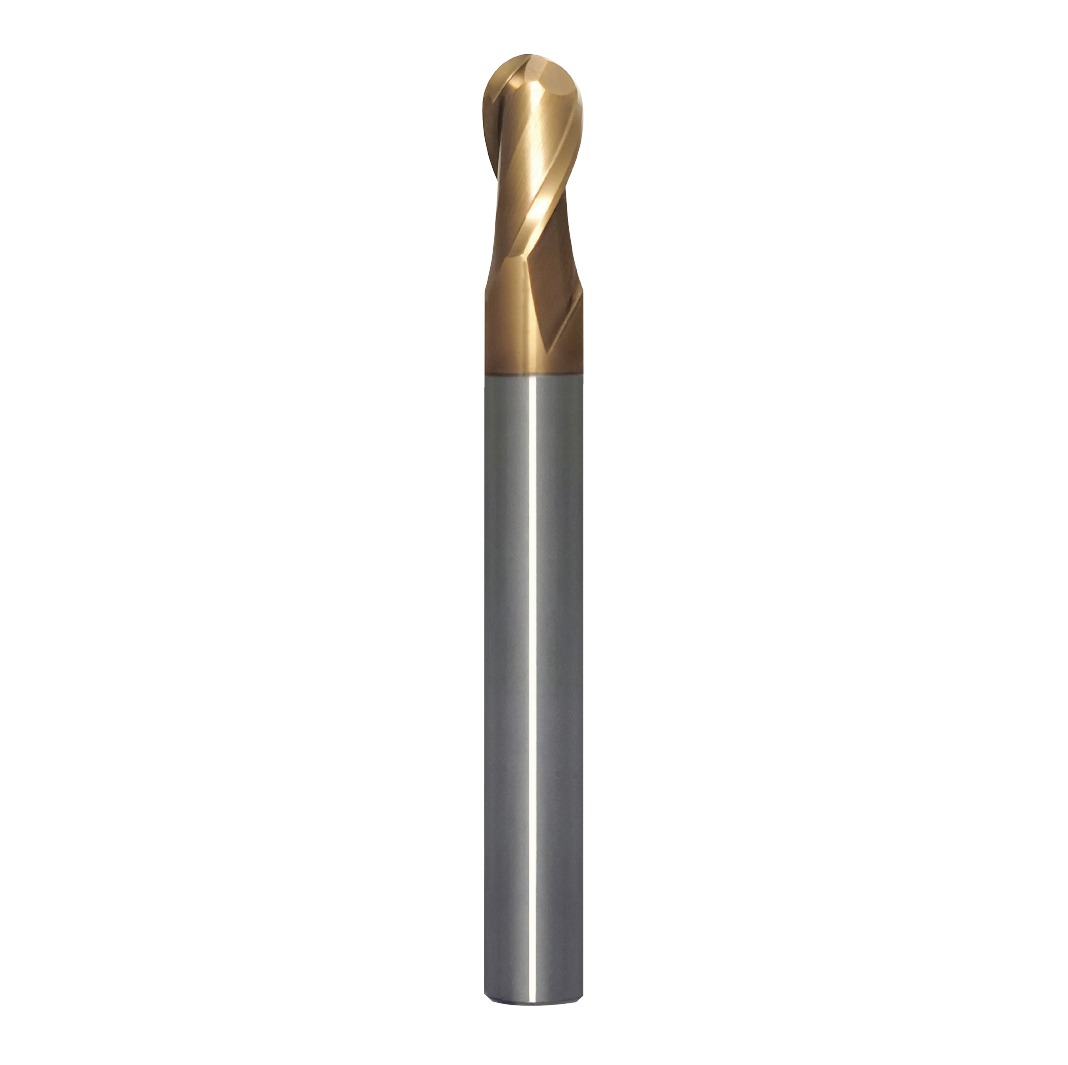

Model: 2 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 2
  • TXM
  • 30度
  • HRC52
  • Shank h5

Can be machining of the surface milling, R groove, profile milling.

Suitable for applications：

  • Stainless steel
  • Titanium alloy
  • Carbon steel
  • Alloy steel
  • HRC45 steel
Previous Back to list Next
  • 2 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 2 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes
  • 2 SLB2/MLB2/LLB2 (Ball Nose, Long Shank),2 Flutes

Specification

Unit：mm

2 SLB 0102TXM 0.5R 1 2 4 75
2 SLB 0102TXMD6 0.5R 1 2 6 75
2 MLB 0102TXM 0.5R 1 2 4 100
2 MLB 0102TXMD6 0.5R 1 2 6 100
2 SLB 0152TXM 0.75R 1.5 3 4 75
2 SLB 0152TXMD6 0.75R 1.5 3 6 75
2 MLB 0152TXM 0.75R 1.5 3 4 100
2 MLB 0152TXMD6 0.75R 1.5 3 6 100
2 SLB 0202TXM 1R 2 4 4 75
2 SLB 0202TXMD6 1R 2 4 6 75
2 MLB 0202TXM 1R 2 4 4 100
2 MLB 0202TXMD6 1R 2 4 6 100
2 SLB 0252TXM 1.25R 2.5 5 4 75
2 SLB 0252TXMD6 1.25R 2.5 5 6 75
2 MLB 0252TXM 1.25R 2.5 5 4 100
2 MLB 0252TXMD6 1.25R 2.5 5 6 100
2 SLB 0302TXMD3 1.5R 3 6 3 75
2 SLB 0302TXM 1.5R 3 6 4 75
2 SLB 0302TXMD6 1.5R 3 6 6 75
2 MLB 0302TXMD3 1.5R 3 6 3 100
2 MLB 0302TXM 1.5R 3 6 4 100
2 MLB 0302TXMD6 1.5R 3 6 6 100
2 SLB 0402TXM 2R 4 8 4 75
2 SLB 0402TXMD6 2R 4 8 6 75
2 MLB 0402TXM 2R 4 8 4 100
2 MLB 0402TXMD6 2R 4 8 6 100
2 SLB 0502TXM 2.5R 5 10 6 75
2 MLB 0502TXM 2.5R 5 10 6 100
2 SLB 0602TXM 3R 6 12 6 75
2 MLB 0602TXM 3R 6 12 6 100
2 SLB 0802TXM 4R 8 16 8 75
2 MLB 0802TXM 4R 8 16 8 100
2 LLB 0802TXM 4R 8 16 8 150
2 MLB 1002TXM 5R 10 20 10 100
2 LLB 1002TXM 5R 10 20 10 150
2 MLB 1202TXM 6R 12 24 12 100
2 LLB 1202TXM 6R 12 24 12 150
2 MLB 1602TXM 8R 16 32 16 150
2 MLB 2002TXM 10R 20 40 20 150

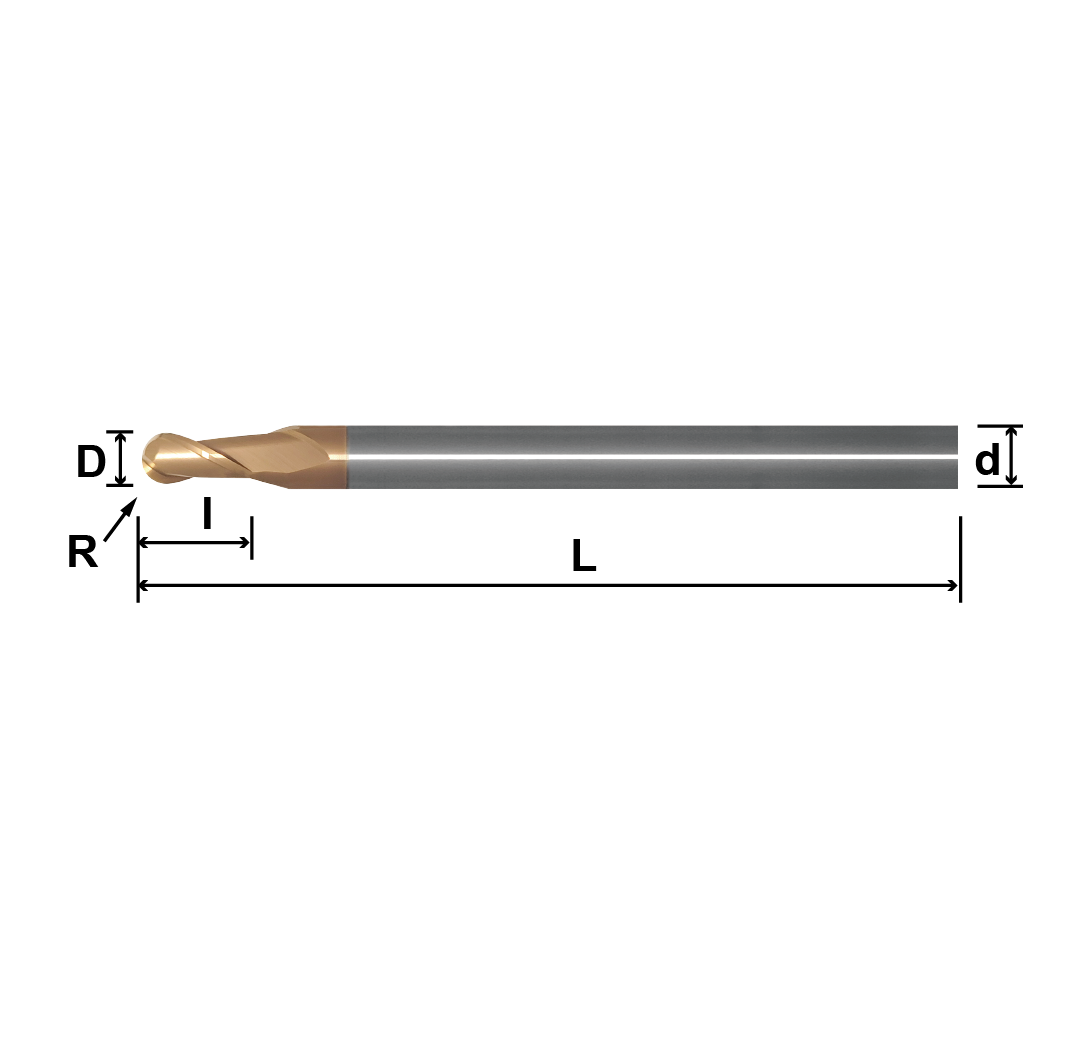

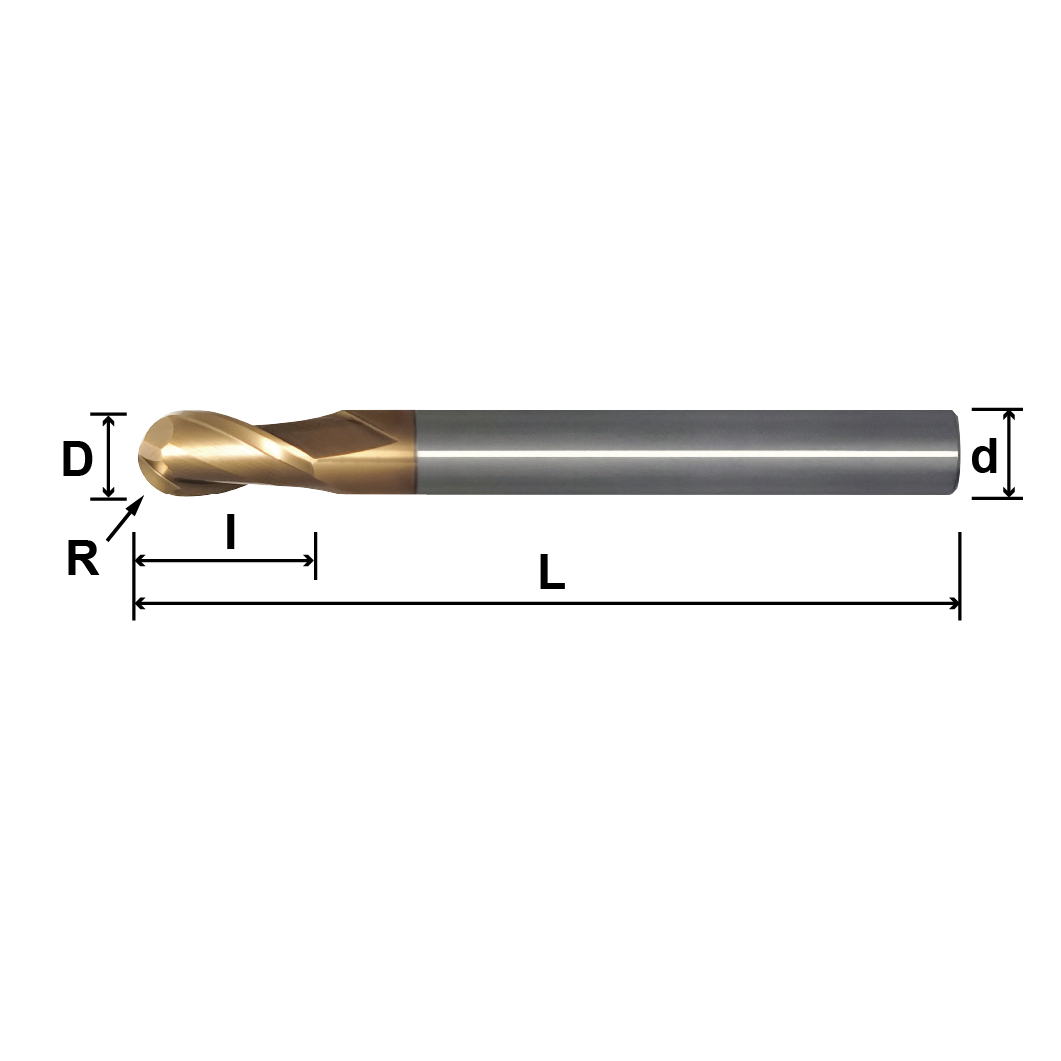

Model No. Radius
R		 Diameter
D		 Flute Length
I		 Shank Diameter
d		 Overall Length
L		 price

Remarks: For other specifications, please call to inquire
