Long Shank Corner Radius for Aluminum Alloy

Model: 2 SLAR/MLAR/LLAR, 3 Flutes
  • 2
  • 50度
  • HRC35
  • Shank h5
Previous Back to list
  • 2 SLAR/MLAR/LLAR (Long Shank Corner Radius, For Aluminum Alloy),3 Flutes
  • 2 SLAR/MLAR/LLAR (Long Shank Corner Radius, For Aluminum Alloy),3 Flutes

Specification

Unit：mm

2 SLAR 030023 3 0.2R 10 4 75
2 SLAR 040023 4 0.2R 12 4 75
2 SLAR 040053 4 0.5R 12 4 75
2 SLAR 040103 4 1R 12 4 75
2 SLAR 060023 6 0.2R 18 6 75
2 SLAR 060103 6 1R 18 6 75
2 MLAR 060103 6 1R 18 6 100
2 SLAR 060203 6 2R 18 6 75
2 SLAR 080023 8 0.2R 24 8 75
2 SLAR 080053 8 0.5R 24 8 75
2 SLAR 080103 8 1R 24 8 75
2 SLAR 080153 8 1.5R 24 8 75
2 SLAR 080203 8 2R 24 8 75
2 SLAR 080253 8 2.5R 24 8 75
25 SLAR 080303 8 3R 24 8 75
2 MLAR 100103 10 1R 30 10 100
2 MLAR 100203 10 2R 30 10 100
2 MLAR 100303 10 3R 30 10 100
2 MLAR 100403 10 4R 30 10 100
2 MLAR 120103 12 1R 36 12 100
2 MLAR 120153 12 1.5R 36 12 100
2 MLAR 120203 12 2R 36 12 100
2 MLAR 120303 12 3R 36 12 100
2 MLAR 120403 12 4R 36 12 100

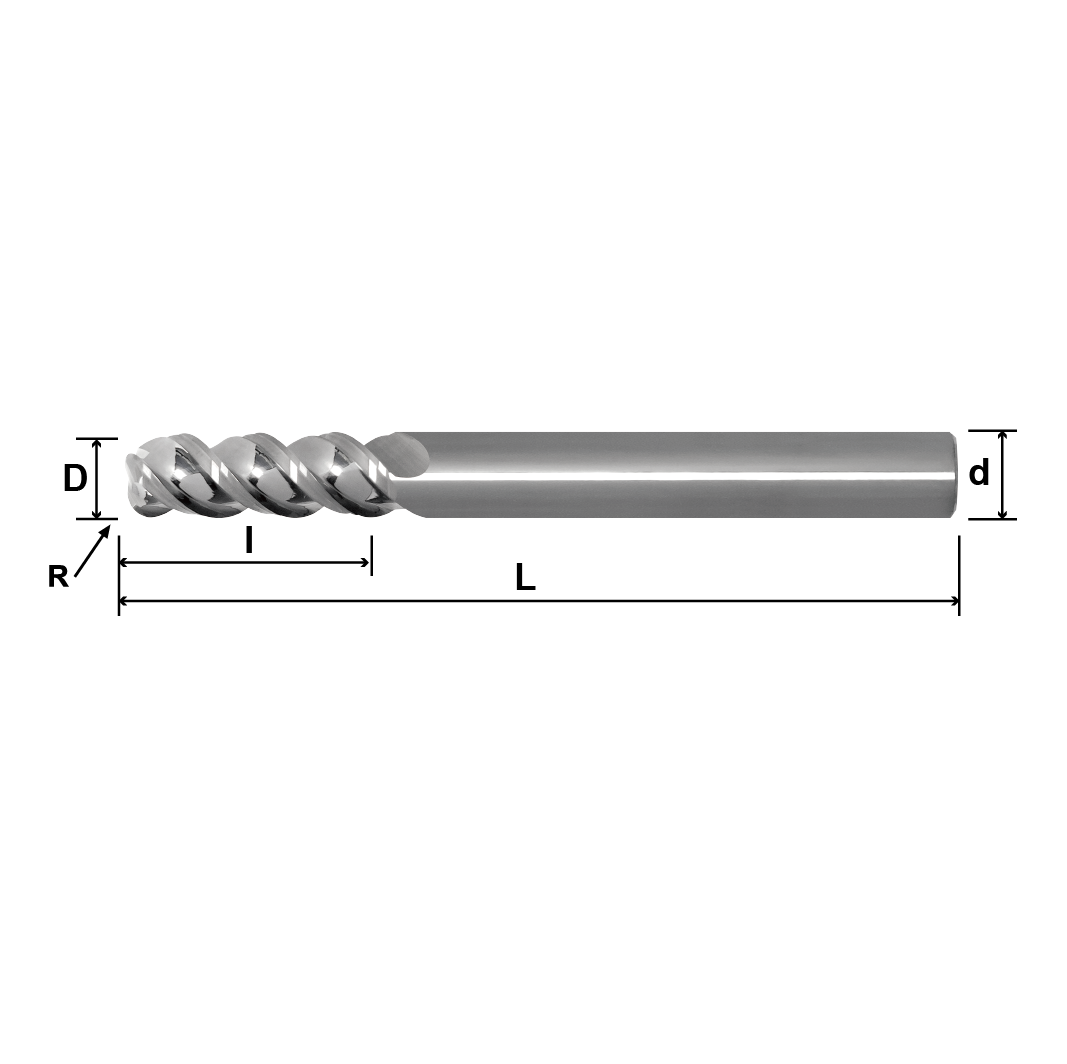

Model No. Diameter
D		 Corner Radius
R		 Flute Length
I		 Shank Diameter
d		 Overall Length
L		  price

Remarks: For other specifications, please call to inquire.
