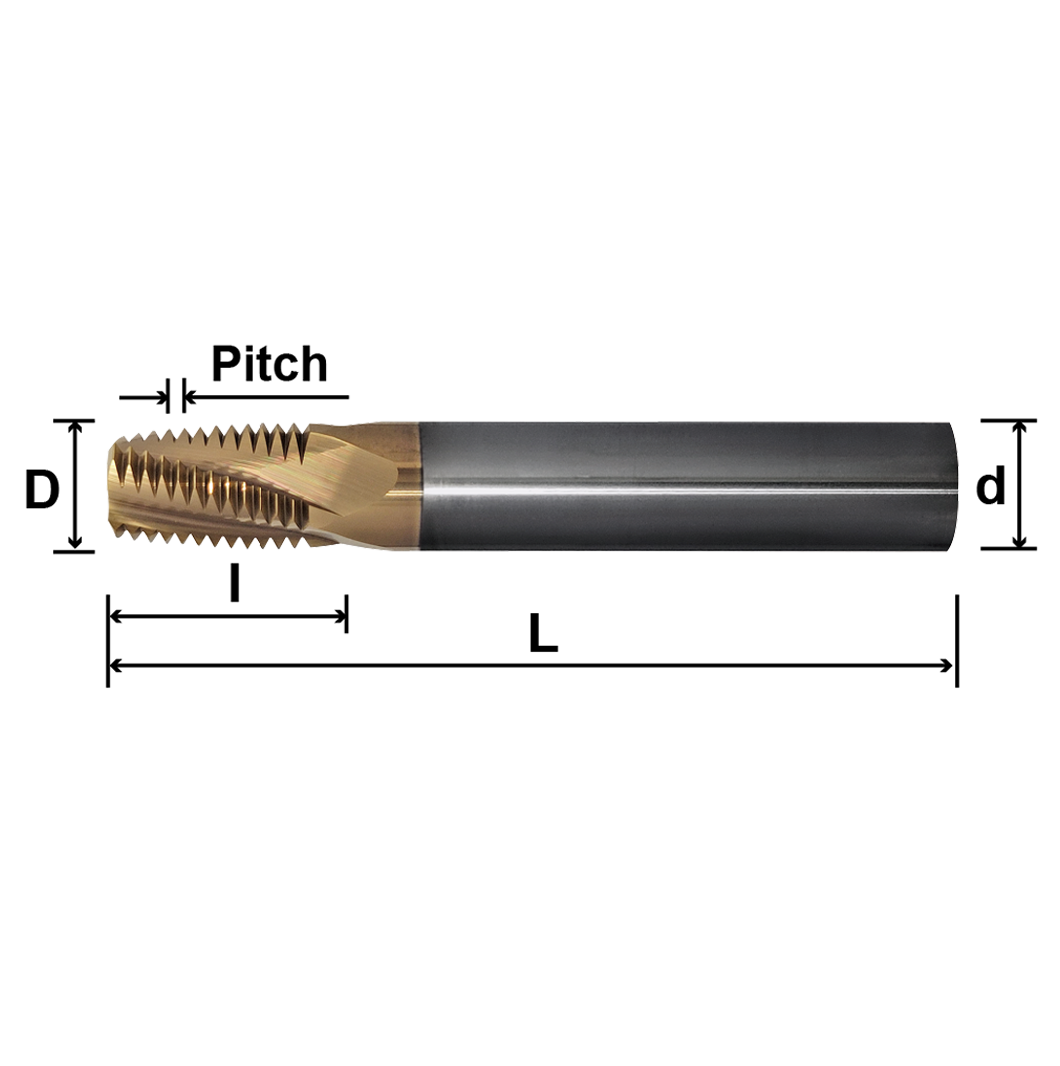

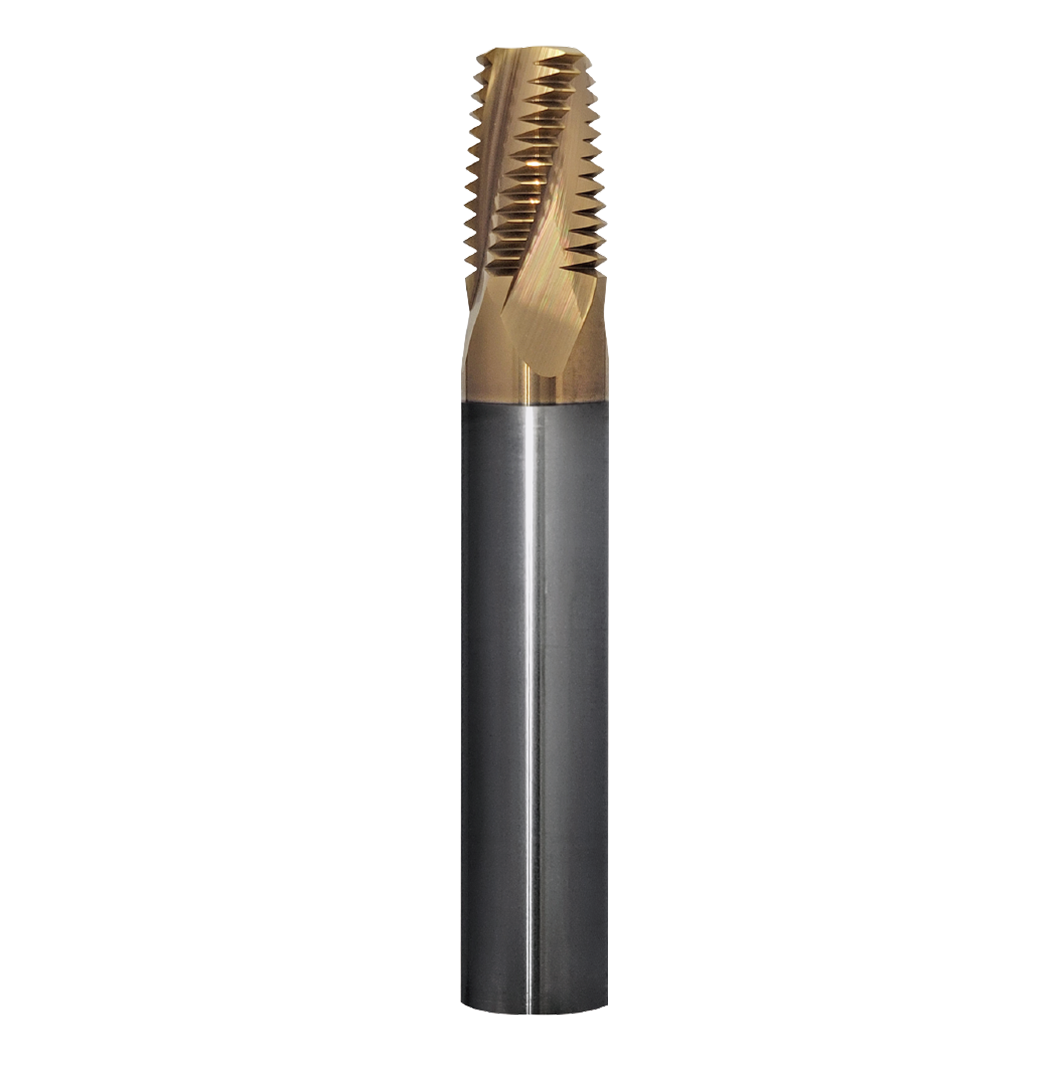

Tungsten Carbide Thread Milling Tools-NPT/NPTF (Internal/External)

Model: VUC

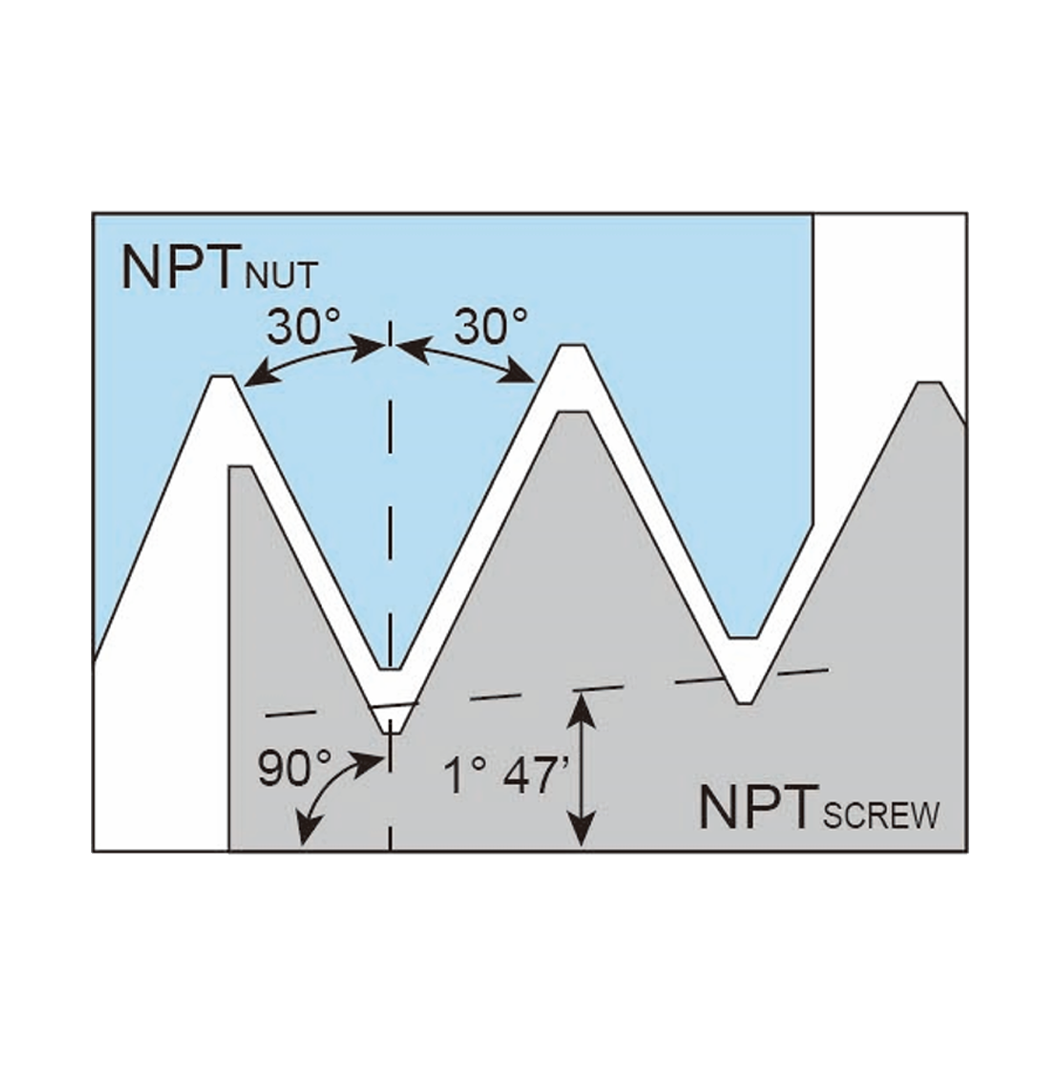

NPT and NPTF are tapered threads.

1. Longer tool life of the thread mill.

2. Shorter machining time.

Previous Back to list Next
  • VUC Tungsten Carbide Thread Milling Tools-NPT/NPTF (Internal/External)
  • VUC Tungsten Carbide Thread Milling Tools-NPT/NPTF (Internal/External)
  • VUC Tungsten Carbide Thread Milling Tools-NPT/NPTF (Internal/External)

Specification

Unit: mm

5 VUC 0513NPT27 TX 5.13 1/16”-27 0.941 11.3 3 6 60 12 6.3
5 VUC 0720NPT27 TX 7.20 1/8”-27 0.941 11.3 4 8 60 12 8.5
5 VUC 0880NPT18 TX 8.80 1/4”-18 1.411 16.9 4 10 75 12 11.1
5 VUC 1090NPT18 TX 10.90 3/8”-18 1.411 16.9 4 12 75 12 14.5
5 VUC 1040NPT14 TX 10.40 1/2 1.814 21.8 4 12 75 12 17.7
5 VUC 1398NPT14 TX 13.98 1/2”,3/4”-14 1.814 25.4 4 16 100 14 17.7/23.0
5 VUC 1790NPT115 TX 17.90 1-2”-11.5 2.209 33.1 4 20 100 15 29.0/56.0
Model No.

 Top Diameter
D1		 Thread Size

 Pitch

 Flute Length
I		 Flute
T		 Shank Diameter
d		 Overall Length
L		 teeth
Zt		 mm

 Note

For other specifications, please call to inquire
